BNC Adapter 410-263 ECE
Details

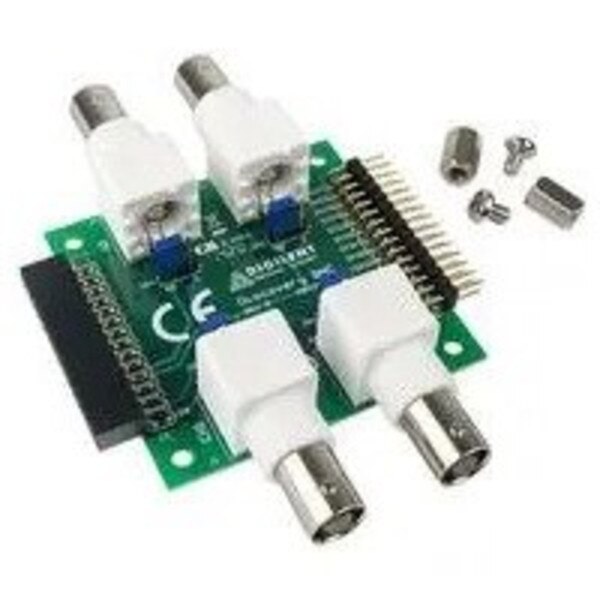

BNC Adapter Board for the Analog Discovery
- Allows the use of standard BNC-terminated test leads and probes on your Analog Discovery
- Selectable AC and DC coupling to oscilloscope probes
- Selectable 50-ohm or 0-ohm output impedance on arbitrary waveform generator (AWG) channels
- With the Discovery BNC, the differential scope inputs of the Analog Discovery become single-ended with the negative input connected to the ground
- Note: The Analog Discovery BNC adapter board does not have differential analog (scope) inputs
